Anchoring System

ANCHORING SYSTEM I

ANCHORS are a patented labor and time saving device, work like a toggle bolt in soil.
ANCHORS are driven into the ground (with no holes, no digging and no concrete), providing a safe and environmentally sensitive installation.

An upward pull on the anchor tendon rotates the anchor into a perpendicular "anchor lock" position in undisturbed soil. The result: superb holding capacities. The ANCHORING SYSTEM offer the most effective, lightweight and economical solutions to any anchoring application, large or small.


INSTALLATION

Anchors work like a toggle bolt when rotated in undisturbed soil.

1. DRIVE ANCHOR TO DESIRED DEPTH:

Anchors are driven into the soil using a hammer and drive steel. As the anchor is being driven, it is actually compacting the soil around the anchor head.



2. SETTING ANCHORS IN THE SOIL:
To set the anchor in normal soil, wrap the wire rope around the drive steel or insert rod through loop in wire rope and pull upward a distance slightly longer than the length of the anchor body. The upward pull on the wire rope rotates the anchor into a perpendicular anchor locking position in undisturbed soil.




ANCHORING SYSTEM II

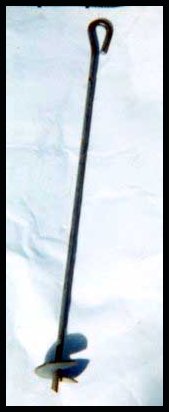

AUGERS 30"

Augers are screwed into the ground and attached to base of frame with u-bolts.
